Pytes Pi LV1

The Pytes Pi LV1 is a compact energy storage system ideal for spaces with limited room. Its modular, stackable design allows you to expand capacity from 5.12 kWh to 30.72 kWh per stack, with total system scalability of up to 245.76 kWh. Built for both indoor and outdoor use, the IP55-rated enclosure delivers excellent durability in demanding environments, including the Australian outback.

Inquire Now

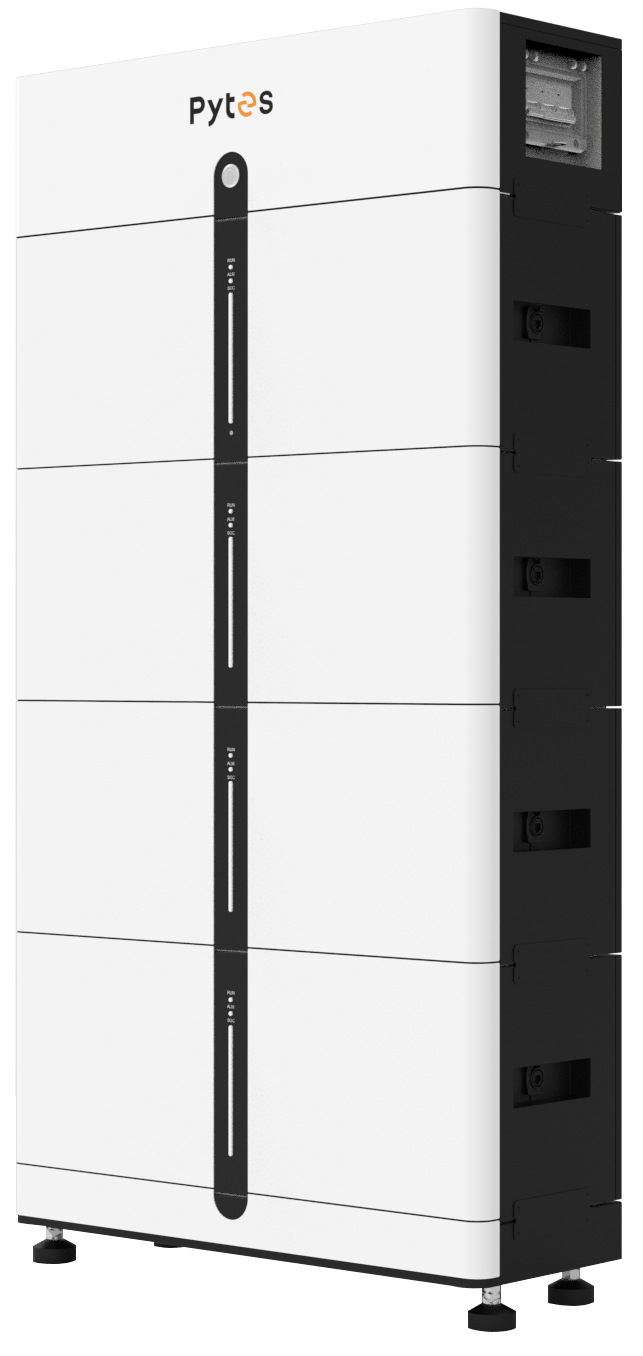

An industrial data center server rack with a white front panel, black side panels, and the word "Pytos" at the top.
A large black and white server rack with multiple compartments and a vertical LED indicator sleeve in the middle. The word 'Pytés' is on the top right corner of the white section.

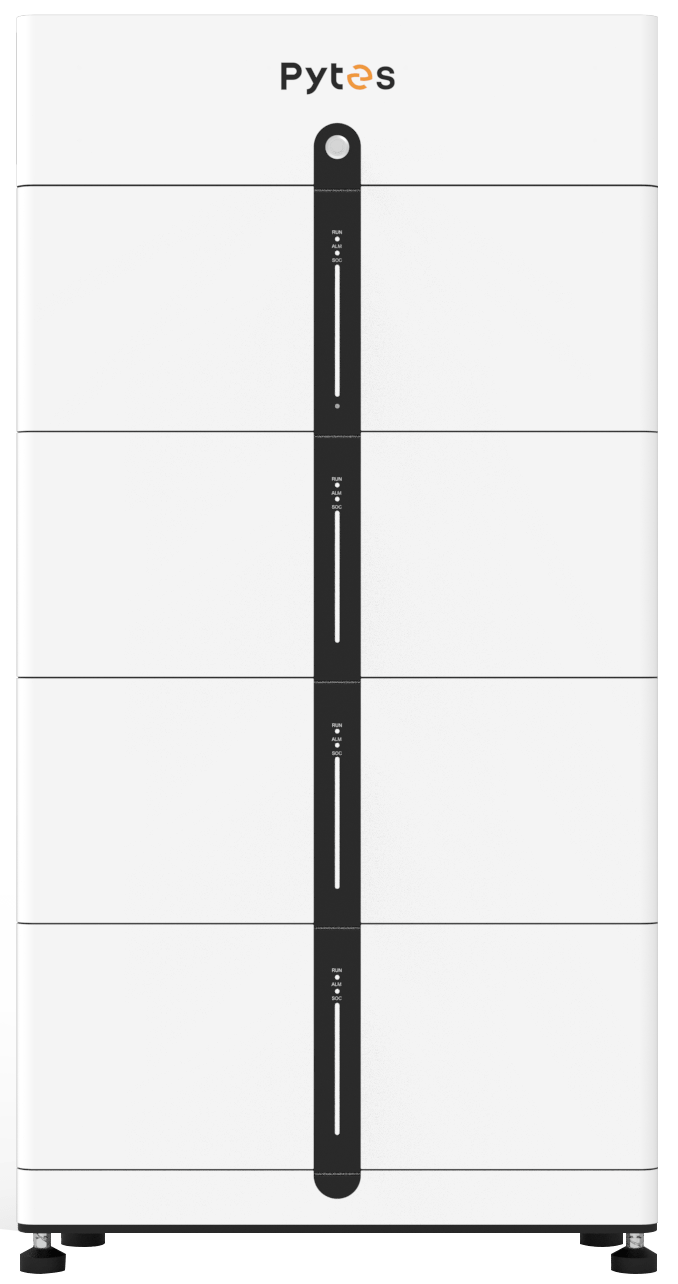

A white vertical storage unit or organizational chart with black sliding labels and small wheels at the bottom, marked with the word 'Pytés' at the top.

Why the

Pytes

Pi LV1?

  • Pi LV1 boasts a hazard-free LFP battery design with a robust structure, field-proven BMS in the individual module, and integrated DC breaker and fuse. With UL9540A large scale tested, it ensures a heightened level of safety and protection, expediting the permitting process with local Authorities Having Jurisdiction (AHJ) for faster and easier approvals.

  • Delivering powerful output, Pi LV1 attains a continuous output of 14.08kW and a surge output of 25.6kW by stacking up to 6 modules. This enhances energy efficiency and contributing to cost savings on your electricity bill.

  • Equipped with IP55 protection level, Pi LV1 provides high-strength waterproof and dustproof features suitable for both indoor and outdoor use, catering to diverse application scenarios.

  • The modular design of Pi LV1 enables flexible configuration based on demand, allowing each stack's capacity to range from 5.12 to 30.72 kWh. With the capability to extend the system to a total of 245.76 kWh, it delivers a versatile and scalable energy storage solution.

  • Pytes' specialized smart monitor effortlessly achieves real-time operation monitoring, allowing for seamless remote upgrades, minimizing subsequent after-sales issues.

    • UN 38.3

    • UL9540

    • Ed3(2023)

    • UL 9540A

    • UL 1973

    • CE

    • SGIP

Product Webinar

Specifications

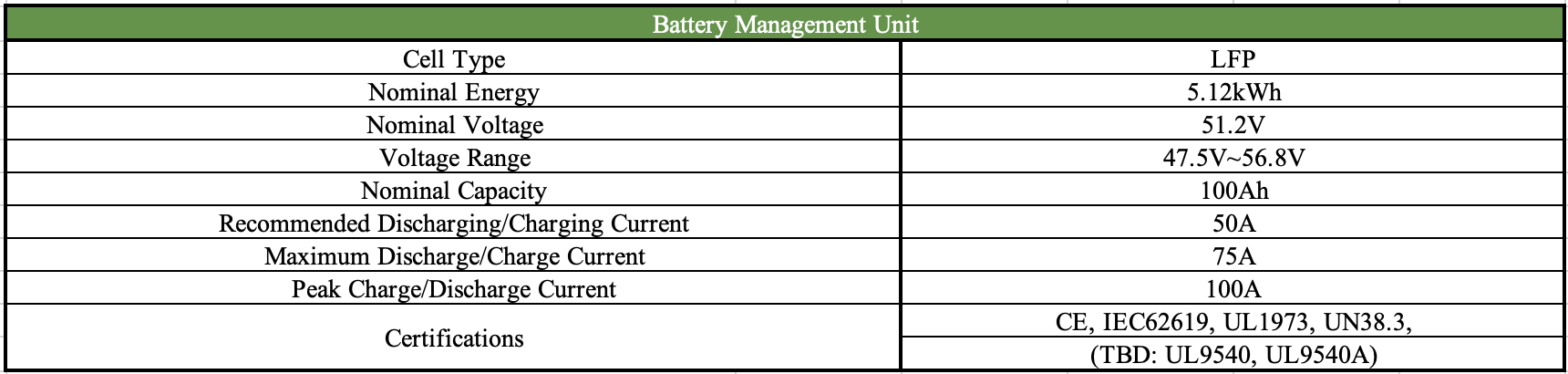

Table displaying technical specifications for a battery management unit, including cell type, nominal energy, voltage, capacity, discharging/charging current, peak current, and certifications.

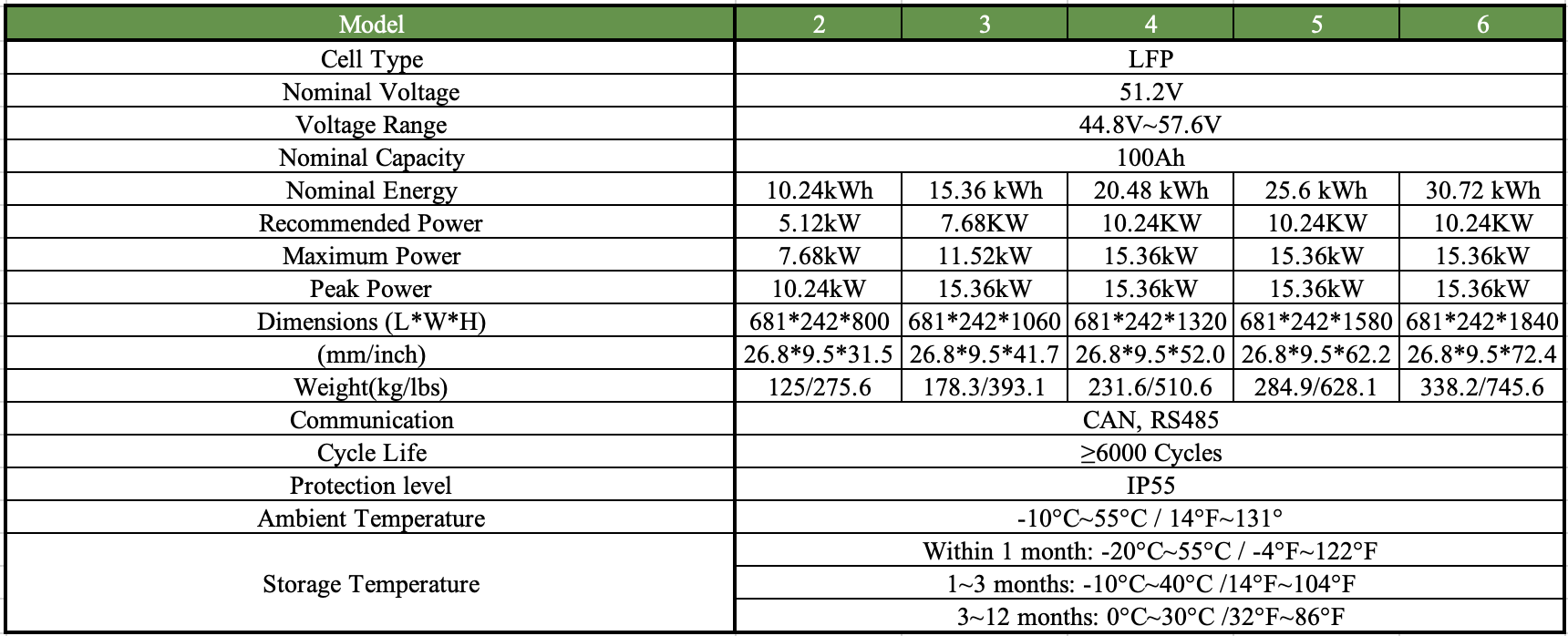

A technical table listing specifications for a series of models of a device, including cell type, voltage, capacity, energy, power, dimensions, weight, communication, cycle life, protection level, ambient and storage temperatures.
